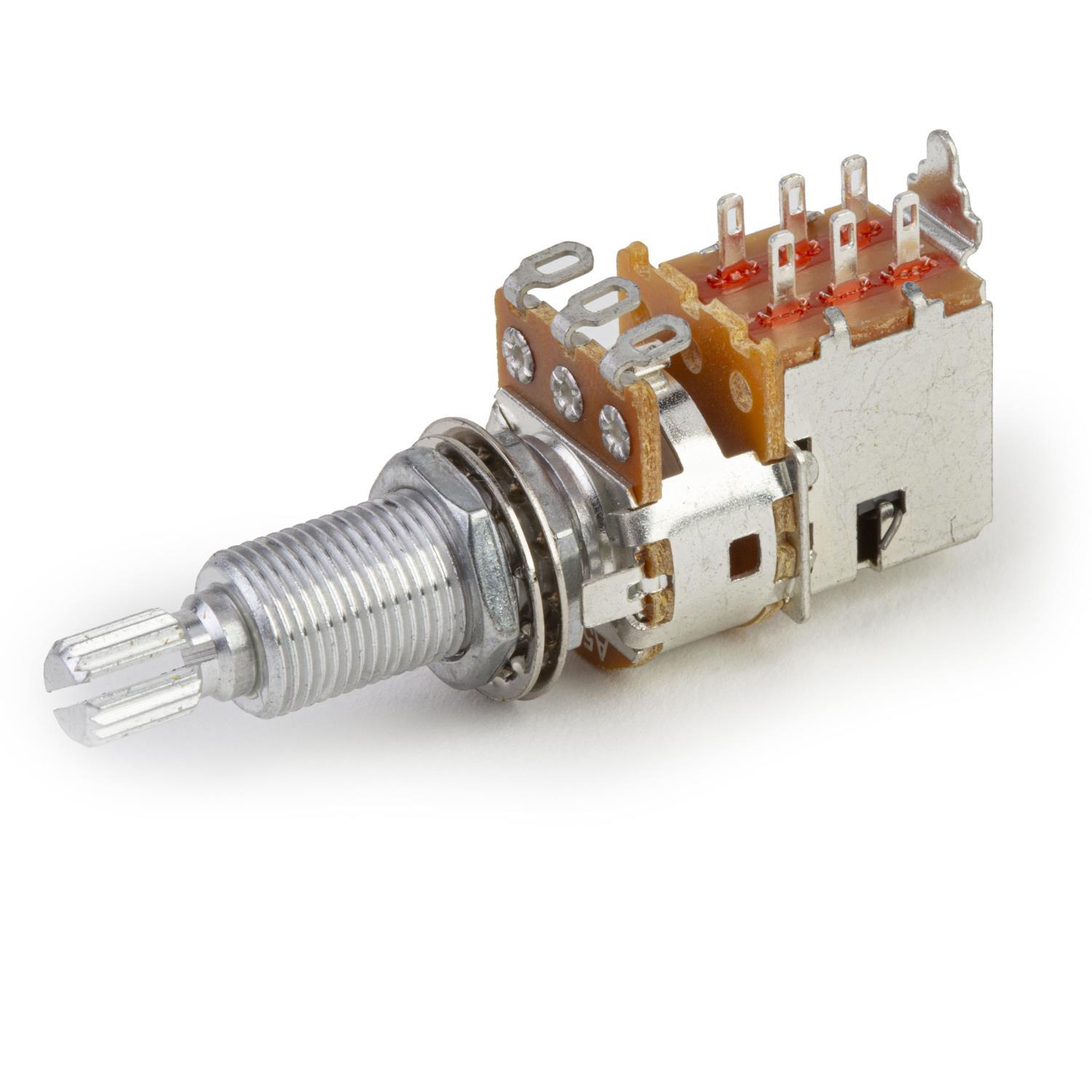

Alpha Push-Pull Pots, 500K-ohm, Long Shaft Potmeter


229 kr -+

Varenummer: 508129
Lagerstatus: På lager

Dual-function audio taper pots pull up to activate an on/on double-pole double-throw mini switch.
-
Can be used as a normal volume or tone control, or control pickup phasing, series/parallel switching, coil-taps, and more.
-
- 500K-ohm,long shaft pot for Les Paul®

- Shaft diameter 6mm split shaft, coarse knurling

- Thread
3/8 x 32

- Threaded portion height
3/4"
(19.05mm)

- Required mounting hole diameter
3/8"
(9.52mm)

- Required body cavity depth
1-1/8"
(28.58mm)

- Two mounting nuts, flat washer and lock washer included
-

-
250K vs. 500K
Generally, 500K-ohm pots are used with humbuckers and 250Ks are used with single-coil pickups. You can use any value you like, but a 250K will give a slightly warmer tone than a 500K pot. The 250K pot bleeds off some of the high frequencies to ground. A 1 Meg-ohm pot bleeds off even less than a 500K pot, so if you want to hear your guitar "wide open" you may want to try one.
-
1-meg pots are also ideal for piezo pickups, as the ultra high impedance piezo element is more adversely effected by conventional, lower-value pots than magnetic pickups.
