CTS 1 Meg solid shaft audio pot - 1 Meg ohm audio taper potentiometer CTS, solid shaft, with hardware.

Dual-function audio taper pots pull up to activate an on/on double-pole double-throw mini switch. - Can be used as a normal volume or tone control, or control pickup phasing, series/parallel switching, coil-taps, and more. - - 500K-ohm,long shaft pot for Les Paul® - Shaft diameter 6mm split shaft, coarse knurling - Thread 3/8 x 32 - Threaded portion height 3/4" (19.05mm) - Required mounting hole diameter 3/8" (9.52mm) - Required body cavity depth 1-1/8" (28.58mm) - Two mounting nuts, flat washer and lock washer included - - 250K vs. 500K Generally, 500K-ohm pots are used with humbuckers and 250Ks are used with single-coil pickups. You can use any value you like, but a 250K will give a slightly warmer tone than a 500K pot. The 250K pot bleeds off some of the high frequencies to ground. A 1 Meg-ohm pot bleeds off even less than a 500K pot, so if you want to hear your guitar "wide open" you may want to try one. - 1-meg pots are also ideal for piezo pickups, as the ultra high impedance piezo element is more adversely effected by conventional, lower-value pots than magnetic pickups.

Jackplate for Les Paul®, Gold plated, with Screws. Jack hole diameter is 3/8" (9.5mm). 1-11/32" square, with the mounting screw holes spacing - 1" (25.4mm). The jackplate has a slight curve to match the body

Jackplate for Les Paul®, Black Plastic. Jack hole diameter is 3/8" (9.5mm). 1-11/32" square, with the mounting screw holes spacing - 1" (25.4mm).

Jackplate for Les Paul®, Cream plastic. Jack hole diameter is 3/8" (9.5mm). 1-11/32" square, with the mounting screw holes spacing - 1" (25.4mm).

Bass String Guide Round with Screw, Nickel

Switchcraft 1/4 inch mono input jack. Includes nut and washer.

250K Mini Pot, Audio Taper, 3/8" Long Bushing, Split, Knurled Shaft with Nut and Washer

CTS 500K Split Shaft Audio Pot - 500K Audio Pot, CTS, split, knurled shaft with nut, lock and dress washer. Threaded bushing is 3/8" tall

Brass Sleeves - Convert Split Shaft Pot to Solid Shaft Pot

9-volt battery terminals mounted on rigid plastic

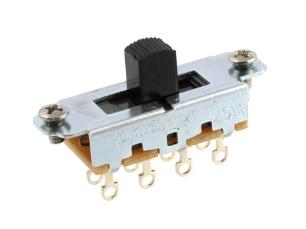

On-On Slide Switch by Switchcraft, for Jazzmaster® and Jaguar® guitars. Black Knob, with screws. Requires 3/4" cavity depth and 5/16" x 9/16" slot . 1-1/8" screw spacing

250K push / pull audio taper potentiometer. Threaded portion is approximately 9.35 mm diameter. 35mm from bottom of pot to top of threaded portion. Pulls out 4 mm. Includes nut and washer.

5-way Oak Grigsby blade switch with stainless steel screws

5-way Oak Grigsby super switch, 1 wafer, 2 pole, with stainless steel screws

ALLPARTS EP-0686-000 CTS 500K Long Split Shaft Audio Pot - 500K Audio Pot, 3/4 Long Threaded Bushing, CTS, split, knurled shaft with nut, lock and dress washer. Threaded bushing is 3/4" tall. Popular replacement pot for many Gibson® Les Paul® guitars.

9-Volt Battery pouch for Acoustic guitars

250K Audio Pot, 3/4 Long Threaded Bushing, CTS, 24 spline split shaft, with hardware

300K Linear Pot, 3/4" Long Threaded Bushing, CTS, Split Shaft, with hardware

Pickguard Screws Phillips Head, Nickel, #4 x 1/2"

Plastic washers for guitar tuning keys. Placed between button and housing. Inside diameter 3.75 mm, outside 6.5 mm.

Plastic washers for bass guitar tuning keys. Placed between button and housing. Inside diameter 4.5 mm, outside 7 mm.

– Stemmeskruer for 12-strengs gitar – Dobbelborrede metallstolper – 125 mm – Plastknapper

machine heads for guitar, 3x left+3x right, plastic buttons, double drilled metal shaft

battery holder, vertical type, without screws and connector, for 9V block battery

speed knob (hatbox), transparent amber

speed knob (hatbox), for inch type pot shaft, transparent amber

speed knob (hatbox), transparent black

speed knob (notched edge), transparent black

speed knob (hatbox), for inch type pot shaft, transparent black

Boston KB-130-T bell knob SG model. black with chrome cap. tone

Boston KB-130-V bell knob SG model. black with chrome cap. volume

bell knob, transparent black

dome knob, metal, diam 18,0mmx18,5mm, with set screw allen type, shaft size 6,1mm, black

dome knob, metal, diam 15,0mmx14,0mm, with set screw allen type, shaft size 6,1mm, black

Boston KCH-270 double dome knob. metal. 14x11 + 19x10mm. with set screws allen type. shaft size 6.0 + 6.1. chrome

speed knob (hatbox), transparent gold

speed knob (hatbox), for inch type pot shaft, transparent gold

– Bell Knob för SG-modell – För tumgängade potentiometrar – Tone – Guld

– Bell Knob för SG-modell – För tumgängade potentiometrar – Volume – Guld

Strengetre med Skrue og Avstandsskive, Cylinder Modell, Krom - høyde 6,5mm

Carbon composition resistors are made by mixing carbon particles with a binder molded into a cylindrical shaped, and then baked. Resistance decreases as temperature increases. Resistance is more prone to drifting than with other types. Standard 'classic' resistor. - - -55° C to 125° C operating range - 350 V working, 700 V overload - Low inductance - Low capacitance - Better pulse endurance characteristics than film type resistors - EIA color coded

Carbon composition resistors are made by mixing carbon particles with a binder molded into a cylindrical shaped, and then baked. Resistance decreases as temperature increases. Resistance is more prone to drifting than with other types. Standard 'classic' resistor. - - -55° C to 125° C operating range - 350 V working, 700 V overload - Low inductance - Low capacitance - Better pulse endurance characteristics than film type resistors - EIA color coded

Capacitors are energy-storage devices that filter the high frequencies. A cap lets the tone control roll off the treble response, progressively warming the tone. The higher the value, the more bass output from the tone control at its "zero" setting. - A cap wired to a potentiometer creates a standard tone control. - Value Code Common use - 180pF 181 PRS Treble bleed - .001uF 102 Common Treble bleed - .022uF 223 Humbucker tone - .047uF 473 Single-coil guitars, many basses - .100uF 104 Basses and certain eras of vintage Fender guitars

Capacitors are energy-storage devices that filter the high frequencies. A cap lets the tone control roll off the treble response, progressively warming the tone. The higher the value, the more bass output from the tone control at its "zero" setting. - A cap wired to a potentiometer creates a standard tone control. - Value Code Common use - 180pF 181 PRS Treble bleed - .001uF 102 Common Treble bleed - .022uF 223 Humbucker tone - .047uF 473 Single-coil guitars, many basses - .100uF 104 Basses and certain eras of vintage Fender guitars

250K audio potentiometer, short length bushing .250", 3/8" diameter Value: Typically 250K pots are used for single coil pickups and 500K pots for humbucker pickups. The bigger the resistence value, the brighter the sound will be/ less highs will bleed off. 1MEG can be used to make humbuckers sound brighter. Taper: The taper of a pot refers to the way its resistance changes as the shaft is rotated. A linear taper pot will work in a linear way related to shaft rotation. As the human ear is not linear in response to increasing volume an audio or logarithmic pot will work best for volume applications. Shaft: A split, knurled shaft will hold most knobs. Sometimes the knob is mounted using a set screw. You should order a solid shaft pot, or align the set screw with the split for correct mounting. Bushing: The standard bushing diameter is 3/8" or 9,5mm, used in most made in USA guitars. Another industry standard is M8, as used by guitar builders outside of the USA. When space is limited mini pots are used with a shaft diameter of 7mm. The standard bushing length is .375" for inch type pots and 10mm for metric type pots. Using two nuts it is very easy to set the correct bushing length for knob placement. Specially for pickguard (ST, PB) or control plate mount (TE, JB) the .250" short bushing will fit perfectly using only one nut. For use with a thick or carved top (LP USA) you should order a bushing length of .750". CTS is (and has been since the 50's) a factory standard for most USA brands like Fender and Gibson. Alpha is a good alternative, nowadays used as a factory standard by Ibanez, Epiphone and Squier.
