Key Features
Design
Simple user interface
Easy navigation
Large touch screen with easy to understand and intuitive graphical interface
User prompts through setup, programming and operation
Console Output Capacity
No limit on number of fixtures, only by number of universes supported
User Interface
Modeled on smart phone icon interface and gesture support
Intuitive interface allowing simple control of all fixture attributes
Supports pinching for zooming and scrolling
The remote app is identical to that on the console display so that you can easily swap between the two
Playback Faders
Dedicated Grand Master fader
Dedicated Cue Stack Control section
One Cue Stack and two Chase faders
Playbacks compatible with and aid progression towards MagicQ
Fixture Faders
Fader for Intensity Control
Flash button
Fixture, Group and Cue modes
RGB LED shows current mode/state
20 fixture faders
Networking
QuickQ supports output of DMX over network via ArtNet/sACN/Pathport
Colour Control
A dedicated “colour control area” with Hue and Saturation encoders, and a pair of additional buttons for colour control
Select from in-built palettes and gel libraries using the touch screen
Ports
2 USB ports for loading and saving shows, and for optional keyboard and mouse audio input and output
In-built WIFI port for simple connection of tablets and smart phones
Offline Software
Offline editor available for both Windows and Mac
Easy upgrades
Includes MagicVis visualiser
Replicates entire QuickQ console software excluding output
Touch Screen 9.7"
Universes Supported 1
DMX Outputs 5-Pin XLR 1
Fixtures Supported 512
Fixture Faders 20
Bump Buttons Y
Dedicated Hue/Saturation Encoders Y
Attribute Encoders 0
Master Faders 2 Chase, 1 Cue Stack
Cue Stacks 1
Dedicated Home Button Y
USB 2
Network Y
External Monitor 1920 x 1080 HDMI
Audio In/Out Y
sACN Y
ArtNet Y
Pathport Y
OSC N
MIDI N
MIDI Timecode N
Supports Moving Lights LEDs & Dimmers
Size (WDH mm) 525 x 350 x 106
Weight 4.7 kg
Software Features
RDM Autopatch
HSV Colour Mixing
Colour Picker
Built-in FX
Chase and Cue Support
Execute Window
Audio Triggering
Tap to Time
Software Upgrade/Downgrade
Easy Fixture Personality Update

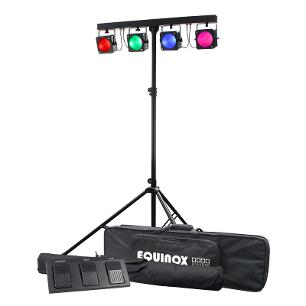

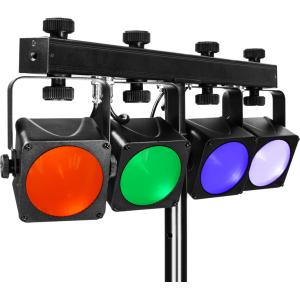

Designed to be an all-in-one lighting package, this Equinox system includes a robust stand, road bag, foot controller and 4 multi-colour LED Par panels fitted to a powered T-bar.
The multidirectional par panels create a multitude of effects and are independently adjustable for maximum room or stage coverage. The foot controller gives instant and simple control over several control modes. With the convenience and ease of fast set-up and take-down this system is ideal for mobile entertainers.
Features:
- 4 x 30W tri-colour COB LEDs (RGB)
- Beam angle: 95°
- Beam angle with supplied lens: 30°
- 30° - 1,120 Lux @ 2m (per par, full on), 95° - 191 Lux @ 2m (per par, full on)
- DMX channels: 1/3/7/12 or 16 selectable
- Auto, sound active and master/slave modes plus built-in programs
- 0-100% dimming and variable strobe
- 4 push button menu with LED digital display
- 3-Pin XLR input/output
- 5-Pin input for included foot controller
- IEC power input
- 2 x IEC power outputs (unswitched)
- Height adjustable stand included
- Carry bag included
- All metal design
- Convection cooled
Specifications
- Power consumption: 130W
- Power supply: 100~240V, 50/60Hz
- Fuse: F3A 250V
- Stand height: 1340mm - 2100mm
- Dimensions of bar: 235 x 990 x 90mm
- Dimensions of foot controller: 40 x 320 x 140mm
- Weight: 12.5kg

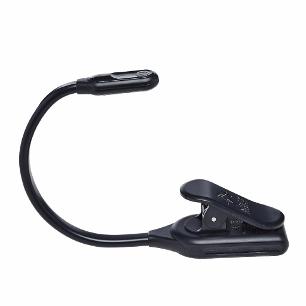

Improving upon our best-selling XtraFlex2 design, The WonderFlex provides 20 lumens of dimmable and adjustable warm-temperature light that is easy on the eyes.
The WonderFlex's precision engineered optical grade lens is specifically designed to distribute a wide field of consistent lighting with no hard edges. The precision lens works in conjunction with our High CRI LEDs (High Color Rendering Index LEDs) to provide better color rendering and even light output. Colors appear more vibrant and true, and with minimal optical distortion. You can also quickly adjust the light output to three different levels by clicking the button on the light head.
The WonderFlex has two dimmable and adjustable LEDs rated for 100,000 hours and is powered by three AAA batteries (included) with a typical battery life of 30 hours, or by any standard micro USB cable (Mighty Bright Micro USB cable sold separately).
The WonderFlex Music Stand Light is ideal for musicians, DJs, and engineers - in the studio, on the road, and for focused lighting during performances.
20 LUMENS | 12” x 1.5” x 1.5”

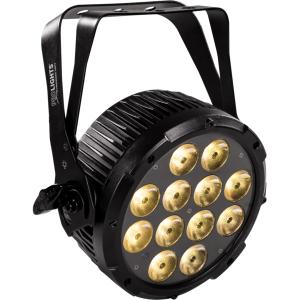

LUMIPAR12UAW is a super-slim ParLED for professional use, designed to be a powerful wash-light. It's equipped with 12x6W high efficiency tunable white/ambra LEDs light source, conceived to offer an advanced color generation with full control on color saturation and temperature. The ultra-thin design and the absence of fans make LUMIPAR12UAW a big innovation compared to traditional Par, offering higher versatility, easy setup and reduced carrying volume. LUMIPAR12UAW is compatible with the infrared remote controller, for intuitive and interactive use without need any external DMX units and can be also controlled wireless through the optional USB Wi-Fi receiver in combination with Wifibox and the smartphone App SmartColor.
Light source and optics
•12x6W tunable white/ambra high-power LEDs
•Lux@3m: 1571 lux
•Beam angle: 16°
•Field angle: 36°
•LEDs average life span: > 50.000 hours
Electronics and features
•User panel through LED display
•Several DMX selectable configurations (3, 7 channels) for advanced or basic controlling
3 channels: A/CW/WW
7 channels: Dimmer, A/CW/WW, strobe, macro, auto, auto speed, dimmer curve
•Auto mode: built-in programs with execution speed adjustment
•Static color mode: selection of static color
•Master/Slave mode: for synchronized operation of more units linked in a chain
•Linear and "stepless" transition between DMX values
•Flicker free operations (400Hz)
Structure and power supply
•Sturdy die-cast aluminium body: IP44
•Silent operations, due to natural cooling of the peculiar chassis and to absence of fans
•Double hanging bracket suitable for safe hanging and for floor positioning
•USB port for USB Wi-Fi receiver (optional)
•Power unit: 100-240V 50/60Hz
•IN/OUT wiring signal and power connections through XLR3p/Powercon
•Average power consumption: 62W
•Weight: 3,2 kg
Dimensions (WxHxD): 253x200x237 mm
